Description
Version:

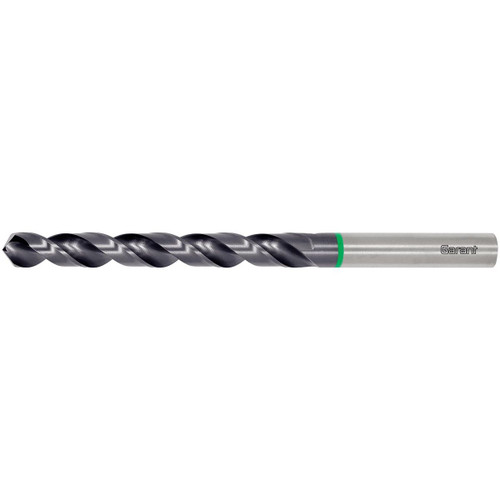

High performance drills for outstanding performance. Precision holes due to optimised diamond point geometry and 4-face grinding. The special flute profile yields a significant reduction in cutting forces.
Recommendation:
Maximum drilling depth:
L2 = LC - 1.5 × DC.
Through-coolant: no
Standard: DIN 338
Tolerance nominal ?: h8
Point angle: 118 degrees
Shank: Plain shank
Number of cutting edges Z: 2
recommended maximum drilling depth L2: 10.5 mm
Flute length Lc: 12 mm
Overall length L: 34 mm
Shank ? Ds: 1 mm
Feed f in stainless steel > 900 N/mm2: 0.02 mm/rev.
