Description
Version:

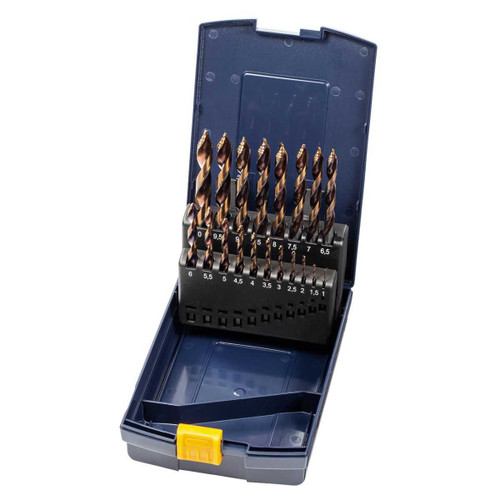

Composed of jobber drills DIN 338.
Chamfers are nitrided.
Particularly sturdy and robust due to the strengthened core diameter. Ground flutes, with high concentricity. Precision ground point. Three drive flats on the shank for use in a 3-jaw chuck.
Note:
? 1 - 3.5 mm: Drills with plain shank, without drive flats.
Through-coolant: no
Number of cutting edges Z: 2
Drill range: 1 - 10 mm
Number of drills: 19
Incremental steps of drills: 0.5 mm
Composed of jobber drills DIN 338.
Chamfers are nitrided.
Particularly sturdy and robust due to the strengthened core diameter. Ground flutes, with high concentricity. Precision ground point. Three drive flats on the shank for use in a 3-jaw chuck.
- Ideal for producing precise holes in sheet metal, pipes, and profiles.
- Reliable spot drilling without centring or centre punching ?" even on curved surfaces ?" thanks to innovative ground point.
- Oblique spot drilling after the first level of the drill tip has penetrated into the material without any problems.
- Drilling with significantly less force required than with conventional DIN338 HSS drills ?" up to a diameter of 13 mm directly in the cordless drill/driver.
- Stable and secure form fit in the 3-jaw chuck.
- General use across a wide spectrum of materials including plastic, wood and acrylic without tearing or splintering.
- The drill does not rattle or dig in ?" even in the case of thin-walled materials.
- Burr-free drill exit.
- Ideal for drilling out bolts and rivets.
Note:
? 1 - 3.5 mm: Drills with plain shank, without drive flats.
Through-coolant: no
Number of cutting edges Z: 2
Drill range: 1 - 10 mm
Number of drills: 19
Incremental steps of drills: 0.5 mm
