Description
Version:

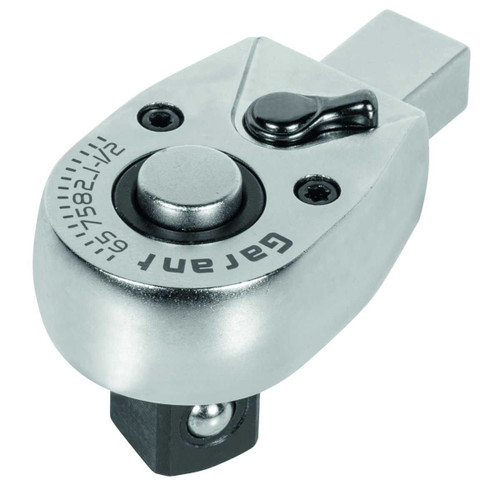

Drop-forged; all plug-in heads = Rectangular shank with spring retaining pin. This ensures a solid and secure fit of the plug-in head in the torque wrench. Very compact plug-in reversible ratchet with ejector.
Material:
Chrome vanadium steel, chrome-plated.
Cutting dataa:
Legend for drawing and formula:
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
Suitable for:
Torque wrench with rectangular sockets.
Note:
Please note the pitch of the plug-in head and match this to that of the adjustment tool (see test certificate/operating instructions of the torque wrench you are using). If these vary, correct the pitch!
Further plug-in heads with rectangular plug-in shank 22 × 28 mm available on request.
Material: Chrome vanadium steel
Square drive: 1/2 in
Width b: 32 mm
Height h: 16.4 mm
Long-term rated loading: 135 Nm
Pitch S: 28 mm
No. of teeth: 48
Plug-in shank: 9×12 mm
