Description
Version:

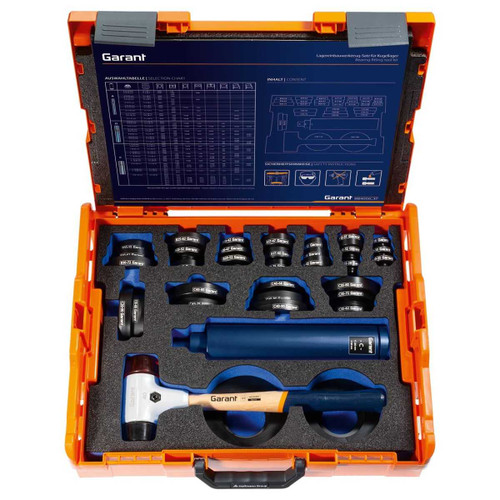

Installation set for installing bearings without damaging axles, bearing housings or sealing rings. Light but very robust aluminium impact sleeves in combination with 33 striking rings made of impact-resistant polyoxymethylene for bearing external ? from 26 - 110 mm and internal ? from 10 - 50 mm. Supplied with dead-blow-absorbing soft-faced hammer in sturdy plastic L-Boxx® system case.
Application:
Quick, precise, and safe installation of (roller) bearings thanks to even application of force on the bearing. Also suitable for fitting of bushes, sealing rings, and pulleys.
Supplied with:
37-piece set in plastic system case L-Boxx® No. 693330 size 136
3 impact sleeves, 25; 40; 60 mm
1 set of impact rings inner ? 10 mm (outer ? 26; 30; 35 mm)
1 set of impact rings inner ? 12 mm (outer ? 28; 32; 37 mm)
1 set of impact rings inner ? 15 mm (outer ? 32; 35; 42 mm)
1 set of impact rings inner ? 17 mm (outer ? 35; 40; 47 mm)
1 set of impact rings inner ? 20 mm (outer ? 42; 47; 52 mm)
1 set of impact rings inner ? 25 mm (outer ? 47; 52; 62 mm)
1 set of impact rings inner ? 30 mm (outer ? 55; 62; 72 mm)
1 set of impact rings inner ? 35 mm (outer ? 62; 72; 80 mm)
1 set of impact rings inner ? 40 mm (outer ? 68; 80; 90 mm)
1 set of impact rings inner ? 45 mm (outer ? 75; 85; 100 mm)
1 set of impact rings inner ? 50 mm (outer ? 80; 90; 110 mm)
1 soft-faced hammer with dead-blow absorption similar to No. 752500 size 40G with 1 rubber and plastic inserts each.
Packaging: Modular case (L-Boxx)
