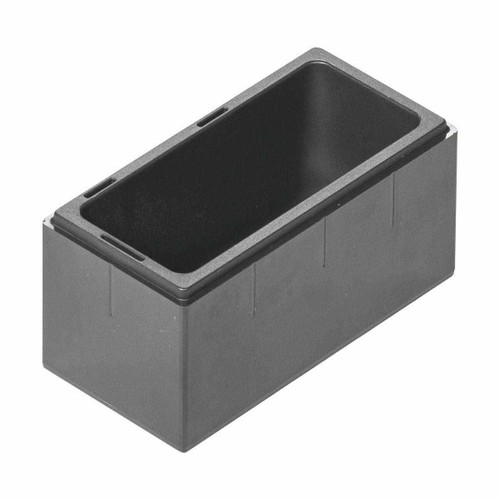

For sorting fasteners, inserts, and other small hardware in tool cabinet drawers, the GARANT GridLine easyPick small parts organizer gives every component a fixed, findable place. Each bin stands 50 mm (2.0 in.) tall, a height that suits shallow drawers in machine shops, assembly cells, maintenance areas, and parts cribs.
Footprints on these small parts storage bins scale from a compact 2X3 grid up to 10X14, twenty-five width by depth combinations in all, each one listed in the drop-down. At the top of the range, the 10X14 size offers a 233 mm (9.2 in.) internal width, so larger components have a place in the same drawer system. Verified width and depth for every size appear in the specification table.
Key features:
• Designed for drawers with a front height of 75 mm (3.0 in.), so one bin series covers standard tool cabinets and workbench drawers
• Grid-unit sizing: width and depth follow the GARANT GridLine grid, so multiple bins combine to fill a drawer footprint
• Footprint-coded names: each size states width by depth in grid units, which makes planning a layout and reordering an exact size straightforward
• Material: plastic in every size, so any mix of footprints shares the same bin construction
Specifications by model:
Size | Width | Depth
2X3/1 | 50 mm (1.97 in.) | 75 mm (2.95 in.)
2X4/1 | 50 mm (1.97 in.) | 100 mm (3.94 in.)
2X6/1 | 50 mm (1.97 in.) | 150 mm (5.91 in.)
2X8/1 | 50 mm (1.97 in.) | 200 mm (7.87 in.)
3X3/1 | 75 mm (2.95 in.) | 75 mm (2.95 in.)
3X4/1 | 75 mm (2.95 in.) | 100 mm (3.94 in.)
3X6/1 | 75 mm (2.95 in.) | 150 mm (5.91 in.)
3X8/1 | 75 mm (2.95 in.) | 200 mm (7.87 in.)
3X10/1 | 75 mm (2.95 in.) | 250 mm (9.84 in.)
4X4/1 | 100 mm (3.94 in.) | 100 mm (3.94 in.)
4X6/1 | 100 mm (3.94 in.) | 150 mm (5.91 in.)
4X8/1 | 100 mm (3.94 in.) | 200 mm (7.87 in.)
4X10/1 | 100 mm (3.94 in.) | 250 mm (9.84 in.)
4X12/1 | 100 mm (3.94 in.) | 300 mm (11.81 in.)
4X16/1 | 100 mm (3.94 in.) | 400 mm (15.75 in.)
4X4/2 | 100 mm (3.94 in.) | 100 mm (3.94 in.)
4X4/4 | 100 mm (3.94 in.) | 100 mm (3.94 in.)
6X6/1 | 150 mm (5.91 in.) | 150 mm (5.91 in.)
6X8/1 | 150 mm (5.91 in.) | 200 mm (7.87 in.)
6X10/1 | 150 mm (5.91 in.) | 250 mm (9.84 in.)
6X12/1 | 150 mm (5.91 in.) | 300 mm (11.81 in.)
6X16/1 | 150 mm (5.91 in.) | 400 mm (15.75 in.)
8X8/1 | 200 mm (7.87 in.) | 200 mm (7.87 in.)
8X10/1 | 200 mm (7.87 in.) | 250 mm (9.84 in.)
10X14/1 | 250 mm (9.84 in.) | 350 mm (13.78 in.)
Which drawers do easyPick small parts bins fit?
easyPick bins give small parts a fixed, organized home inside standard GridLine tool cabinet drawers, at the bench and on carts.
Applications: fastener sorting, cutting insert storage, fitting and seal organization, assembly kitting, spare hardware staging, drawer-based order picking.
Industries: machining, metal fabrication, equipment maintenance, electronics assembly, general manufacturing.
Users: machinists, maintenance technicians, assembly workers, tool crib attendants.
Do GridLine easyPick bins work like stackable storage bins?
No. These are drawer inserts rather than stackable storage bins, so they organize parts by sitting side by side inside a drawer instead of stacking on shelves or racking. If your process also uses stackable parts bins or open industrial storage bins, the drawer format complements them by keeping the smallest components sorted where you work. Because GridLine easyPick is a modular line, these bins combine with easyPick troughs and GridLine mats for drawer buildouts that suit your workflow.
What is a picking bin and when does the drawer format help?
A picking bin holds one part type ready to grab, which speeds repetitive assembly and kitting work. The easyPick series applies that idea to drawer storage. Dedicating a bin to each screw size, insert type, or fitting lets you pull parts without searching, and the low 50 mm (2.0 in.) walls keep contents in view when a drawer opens.
How should you combine parts organizer bins in one drawer?
Start from your part mix. Reserve larger footprints for bulky or high-turn components and smaller footprints for fasteners and fittings, then fill the remaining grid area so the layout matches how often you reach for each item. Because every size follows the same grid, you can rearrange or add bins later as stock changes.
Suitable for:
In all drawers with a 7 mm front height.
Height: 50 mm
Width: 250 mm
Depth: 350 mm
Width in G: 10
Depth in G: 14
Width internal: 233 mm
