Description
Version:

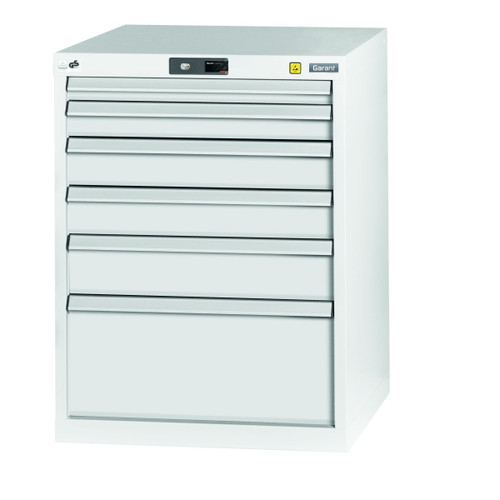

Tool cabinet ESD conductive, to DIN EN 61340-5-1. Roller cabinet in 24×28G with 2 each ball-bearing conductive fixed wheels and castors, ? 125 mm, castors with parking brakes. With raised edge on 4 sides. An anti-tilt device prevents more than one drawer being opened at one time. The casing can be locked centrally with a cylinder lock. 100% full extension drawers with differential runners. Drawers with slots at 25 mm intervals to take slotted dividers (from drawer front height 75 mm). With individual drawer release system prevents the opening of drawers during transport.
Fitted with:
Drawer front height, mm: 75, 75, 100, 150, 200
Colour:
Body and drawers light grey similar to RAL 7035 ESD powder-coated.
Note:
electrostatic characteristic: EGB/ESD
Drawer/pull-out shelf load capacity: 50 kg
Drawer runner extension (partial/full extension): 100 %
Individual drawer release system: One-hand
Drawer usable area in G: 20×24
Height: 885 mm
Width: 600 mm
Depth: 700 mm
Usable height: 600 mm
Drawer body usable height: 600 mm
Drawer usable width: 500 mm
Tool cabinet ESD conductive, to DIN EN 61340-5-1. Roller cabinet in 24×28G with 2 each ball-bearing conductive fixed wheels and castors, ? 125 mm, castors with parking brakes. With raised edge on 4 sides. An anti-tilt device prevents more than one drawer being opened at one time. The casing can be locked centrally with a cylinder lock. 100% full extension drawers with differential runners. Drawers with slots at 25 mm intervals to take slotted dividers (from drawer front height 75 mm). With individual drawer release system prevents the opening of drawers during transport.
Fitted with:
Drawer front height, mm: 75, 75, 100, 150, 200
Colour:
Body and drawers light grey similar to RAL 7035 ESD powder-coated.
Note:
- All plastic components (e.g. covering caps and handles) are non-ESD conductive.
- Grounding via wheels.
electrostatic characteristic: EGB/ESD
Drawer/pull-out shelf load capacity: 50 kg
Drawer runner extension (partial/full extension): 100 %
Individual drawer release system: One-hand
Drawer usable area in G: 20×24
Height: 885 mm
Width: 600 mm
Depth: 700 mm
Usable height: 600 mm
Drawer body usable height: 600 mm
Drawer usable width: 500 mm
