Description
Version:

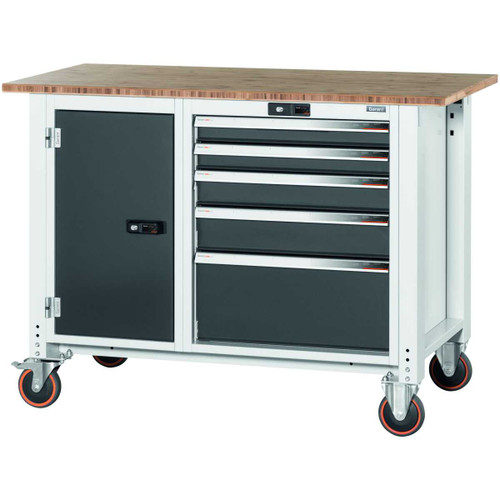

The stable sheet metal housing of the mobile workbench contains 2 integral storage trays. The side wall is perforated for attachment of accessories, ? 9×9 mm on a 37-mm grid. Drawer inner face smooth but nevertheless suitable for dividers. The drawers are unlocked by a central catch within the extruded handle. Drawers can be centrally locked by means of a cylinder lock. With roller bearing wheels (2 castors with parking brake, 2 fixed wheels). 25 mm thick bamboo work top, suitable for fitting a vice.
Fitted with:
Drawer front height: 75; 75; 125; 125; 200 mm
Supplied with:
Supplied with dividers:
each 75 mm drawer 1 slotted partition No. 951510 size 75,
each 125 mm drawer 1 slotted partition No. 951510 size 125.
Colour:
Two-tone powder-coated, silver combined with anthracite RAL 7016.
Note:
For drawers of height 200 mm, more suitable components now include slotted dividers No. 951510 size 200, edge partitions No. 951560 size 200, and divider inserts No. 951741 ?" 951821 each in size 200.
See group 95 for further accessories and dividing material. Suitable dividing material:
Slotted edge partitions No. 951560 size 75; size 125 and size 200;
Slotted dividers No. 951510 size 75; size 125 and size 200;
Divider inserts No. 951721 ?" 951821 size 75; No. 951731 ?" 951821 size 125 and No. 951741 ?" 951821 size 200.
Cylinder lock: modular lock barrel
Drawer usable area in G: 20×16
Height: 900 mm
Width: 1000 mm
Depth: 525 mm
Drawer usable width: 500 mm
Drawer usable depth: 400 mm
Drawer usable width in G: 20
The stable sheet metal housing of the mobile workbench contains 2 integral storage trays. The side wall is perforated for attachment of accessories, ? 9×9 mm on a 37-mm grid. Drawer inner face smooth but nevertheless suitable for dividers. The drawers are unlocked by a central catch within the extruded handle. Drawers can be centrally locked by means of a cylinder lock. With roller bearing wheels (2 castors with parking brake, 2 fixed wheels). 25 mm thick bamboo work top, suitable for fitting a vice.
Fitted with:
Drawer front height: 75; 75; 125; 125; 200 mm
Supplied with:
Supplied with dividers:
each 75 mm drawer 1 slotted partition No. 951510 size 75,
each 125 mm drawer 1 slotted partition No. 951510 size 125.
Colour:
Two-tone powder-coated, silver combined with anthracite RAL 7016.
Note:
For drawers of height 200 mm, more suitable components now include slotted dividers No. 951510 size 200, edge partitions No. 951560 size 200, and divider inserts No. 951741 ?" 951821 each in size 200.
See group 95 for further accessories and dividing material. Suitable dividing material:
Slotted edge partitions No. 951560 size 75; size 125 and size 200;
Slotted dividers No. 951510 size 75; size 125 and size 200;
Divider inserts No. 951721 ?" 951821 size 75; No. 951731 ?" 951821 size 125 and No. 951741 ?" 951821 size 200.
Cylinder lock: modular lock barrel
Drawer usable area in G: 20×16
Height: 900 mm
Width: 1000 mm
Depth: 525 mm
Drawer usable width: 500 mm
Drawer usable depth: 400 mm
Drawer usable width in G: 20
