Description
NOTE: Colour selection possible
Version:
Version as described under No. 942033 size 2000/4 but with 3 pull-out frames. Outstandingly suitable for space-saving storage of lifting tackle and slings.
Swing doors reinforced on the inside and can be locked by 2-component Haptoprene slide handle with a cylinder lock. With pull-out frames with ? 9×9mm at 37 mm intervals for mounting hooks and supports, and perforated panel accessories. Perforated panels adjustable on a 50-mm grid. The perforated panels are arranged as telescopic sections, each equipped with a lock so that only one perforated panel can ever be open at a time. Load capacity per pull-out frame 80 kg. Usable area for each side of the pull-out frame is 2.1 m2 (depth × height 635×1690 mm).

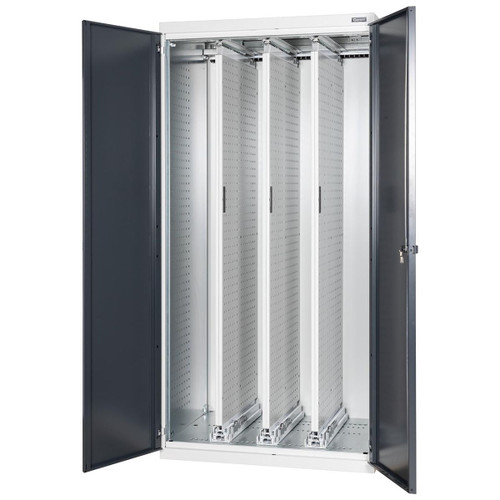

Perforated panel upright cabinet in 40×28G
Supplied with:
3 pc. storage trays for slings No. 942054 size 2; 4 pc. universal holders 45° No. 955590 size 75; 4 pc. universal holders 90° No. 955600 size 100×100.
Colour:
Standard ex stock ? body RAL 7035 light grey, doors RAL 7016 anthracite powder?coated.
Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003
Vertical pull-out frame load capacity: 80 kg
Height: 2000 mm
Width: 1000 mm
Depth: 700 mm
Width in G: 40
Depth in G: 28
Vertical pull-out frame usable height: 1690 mm
Version:
Version as described under No. 942033 size 2000/4 but with 3 pull-out frames. Outstandingly suitable for space-saving storage of lifting tackle and slings.
Swing doors reinforced on the inside and can be locked by 2-component Haptoprene slide handle with a cylinder lock. With pull-out frames with ? 9×9mm at 37 mm intervals for mounting hooks and supports, and perforated panel accessories. Perforated panels adjustable on a 50-mm grid. The perforated panels are arranged as telescopic sections, each equipped with a lock so that only one perforated panel can ever be open at a time. Load capacity per pull-out frame 80 kg. Usable area for each side of the pull-out frame is 2.1 m2 (depth × height 635×1690 mm).
Perforated panel upright cabinet in 40×28G
Supplied with:
3 pc. storage trays for slings No. 942054 size 2; 4 pc. universal holders 45° No. 955590 size 75; 4 pc. universal holders 90° No. 955600 size 100×100.
Colour:
Standard ex stock ? body RAL 7035 light grey, doors RAL 7016 anthracite powder?coated.
Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003
Vertical pull-out frame load capacity: 80 kg
Height: 2000 mm
Width: 1000 mm
Depth: 700 mm
Width in G: 40
Depth in G: 28
Vertical pull-out frame usable height: 1690 mm
