Description
NOTE: Colour selection possible
Version:

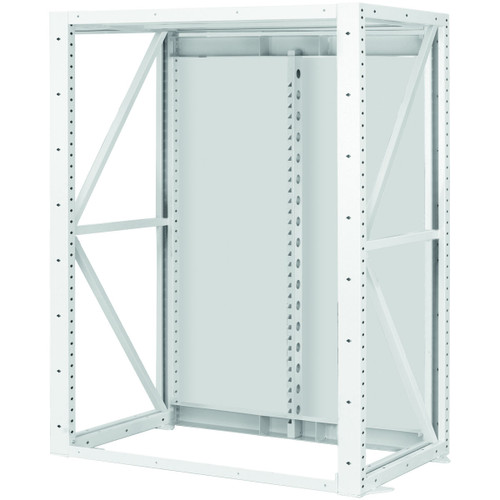

Frame stiles of C-profile 100 mm wide. With insertion holes every 50 mm for insertion of pull-out shelves. With locking bar (anti-tip protection), top shelf and rear panel (4 pieces for size 2000, 5 pieces for size 2500).
Application:
For fitting in conjunction with pull-out shelves No. 993101; 993111, together with side panels No. 993260; 993270, and swing doors No. 993321; 993331, and electrically-operated roller shutter No. 993310 ? 993316.
Colour:
Light grey RAL 7035 powder-coated.
Note:
Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003
Placing a pallet into storage: Pallet crossways insertion
Usable height: 1890 mm
maximum fitting with pull-out shelves/storage shelves: 3
Top shelf: 500 kg
Bay load (individual bay): 4000 kg
Version:
Frame stiles of C-profile 100 mm wide. With insertion holes every 50 mm for insertion of pull-out shelves. With locking bar (anti-tip protection), top shelf and rear panel (4 pieces for size 2000, 5 pieces for size 2500).
Application:
For fitting in conjunction with pull-out shelves No. 993101; 993111, together with side panels No. 993260; 993270, and swing doors No. 993321; 993331, and electrically-operated roller shutter No. 993310 ? 993316.
Colour:
Light grey RAL 7035 powder-coated.
Note:
- For safety the rack base plates must be anchored to the floor with suitable fastenings.
- Supplied for self-assembly, saving freight costs. Delivered unassembled.
Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003
Placing a pallet into storage: Pallet crossways insertion
Usable height: 1890 mm
maximum fitting with pull-out shelves/storage shelves: 3
Top shelf: 500 kg
Bay load (individual bay): 4000 kg
