Description
Version:

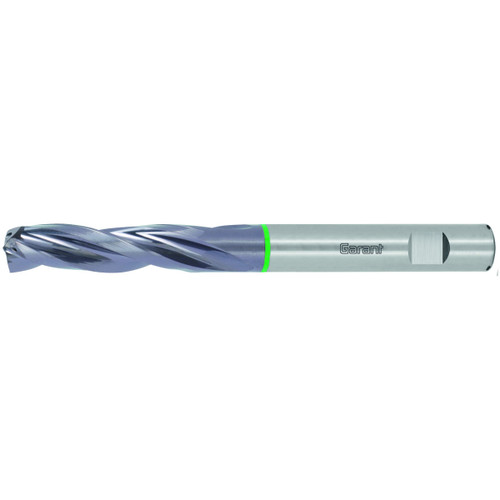

3-flute drill, specially developed for use at very high feed rates. Outstandingly suitable for machines with high installed power and stable machining conditions.
The sector-leading technology of the chisel point guarantees optimum self-centring behaviour and permits spot drilling on irregular surfaces. 3 guide chamfers guarantee a stable exit from the hole and an exact roundness of the hole.
Note:
Flute length LC = L2 + 1.5 × DC.
Standard: DIN 6537 K
Tolerance nominal ?: h7
Number of cutting edges Z: 3
Tolerance nominal ?: h7
recommended maximum drilling depth L2: 40.95 mm
Overall length L: 107 mm
Shank ? Ds: 14 mm
Feed f in steel < 1100 N/mm2: 0.56 mm/rev.
3-flute drill, specially developed for use at very high feed rates. Outstandingly suitable for machines with high installed power and stable machining conditions.
- Special cutter geometry with stable cutting edges and large clearance at the centre enables very high feed rates.
- The patented tip is optimised for chip flow and generates low cutting pressure with good chip breakage.
- With a 145° point angle for low burrs on emerging from through holes.
The sector-leading technology of the chisel point guarantees optimum self-centring behaviour and permits spot drilling on irregular surfaces. 3 guide chamfers guarantee a stable exit from the hole and an exact roundness of the hole.
Note:
Flute length LC = L2 + 1.5 × DC.
Standard: DIN 6537 K
Tolerance nominal ?: h7
Number of cutting edges Z: 3
Tolerance nominal ?: h7
recommended maximum drilling depth L2: 40.95 mm
Overall length L: 107 mm
Shank ? Ds: 14 mm
Feed f in steel < 1100 N/mm2: 0.56 mm/rev.
