Description
Version:

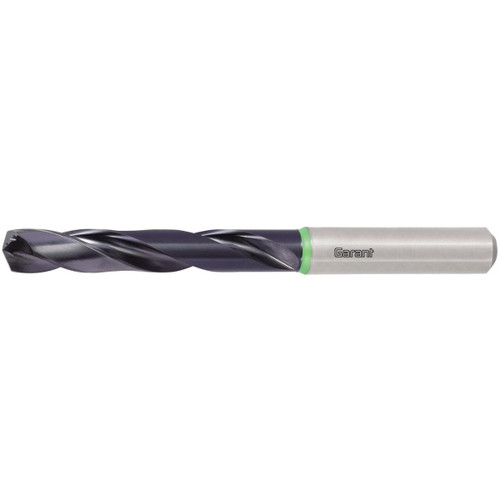

Cutting chisel edge with high centring accuracy due to strong core and special point geometry. High roundness and alignment accuracy of the deep hole, thanks to 4 guide chamfers. Outstanding chip evacuation due to 4 internal cooling channels from ? 3.8 mm. Up to 3.7 mm ? with 2 internal cooling channels. With 140° point angle and special j6 cutting edge tolerance for optimum generation of a pilot hole.
Note:
Flute length LC = L2 + 1.5 × DC.
For deep-hole drilling deeper than 12×D a pilot hole is recommended, and for deep-hole drilling from 20×D to 30×D it is essential.
The generation of a pilot hole improves process reliability.
Form HB and HE supplied at the same price as HA.
Form HB: order with No. 122738.
Form HE: order with No. 122736 + 129100HE.
Standard: DIN 6537 L
Tolerance nominal ?: p6
Number of cutting edges Z: 2
Tolerance nominal ?: p6
recommended maximum drilling depth L2: 46 mm
Overall length L: 103 mm
Shank ? Ds: 10 mm
Feed f in steel < 1100 N/mm2: 0.27 mm/rev.
Cutting chisel edge with high centring accuracy due to strong core and special point geometry. High roundness and alignment accuracy of the deep hole, thanks to 4 guide chamfers. Outstanding chip evacuation due to 4 internal cooling channels from ? 3.8 mm. Up to 3.7 mm ? with 2 internal cooling channels. With 140° point angle and special j6 cutting edge tolerance for optimum generation of a pilot hole.
Note:
Flute length LC = L2 + 1.5 × DC.
For deep-hole drilling deeper than 12×D a pilot hole is recommended, and for deep-hole drilling from 20×D to 30×D it is essential.
The generation of a pilot hole improves process reliability.
Form HB and HE supplied at the same price as HA.
Form HB: order with No. 122738.
Form HE: order with No. 122736 + 129100HE.
Standard: DIN 6537 L
Tolerance nominal ?: p6
Number of cutting edges Z: 2
Tolerance nominal ?: p6
recommended maximum drilling depth L2: 46 mm
Overall length L: 103 mm
Shank ? Ds: 10 mm
Feed f in steel < 1100 N/mm2: 0.27 mm/rev.
