Description
Version:

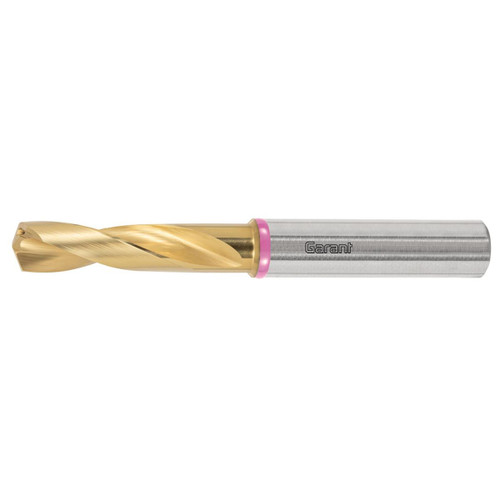

Specially for machining titanium-based and nickel-based alloys. With wear-resistant, ultra-smooth TiAlSiN high-performance coating for a long tool life combined with optimum bore quality and very low burr formation.
Note:
Flute length LC = L2 + 1.5 × DC.
HB and HE shanks are available at the same price as HA.
For HB: use order No. 122481.
For HE: use order No. 122480 and 129100HE.
Standard: DIN 6537 K
Tolerance nominal ?: m7
Number of cutting edges Z: 2
Tolerance nominal ?: m7
recommended maximum drilling depth L2: 32 mm
Overall length L: 89 mm
Shank ? Ds: 10 mm
Feed f in titanium > 850 N/mm2: 0.13 mm/rev.
