Description
Version:

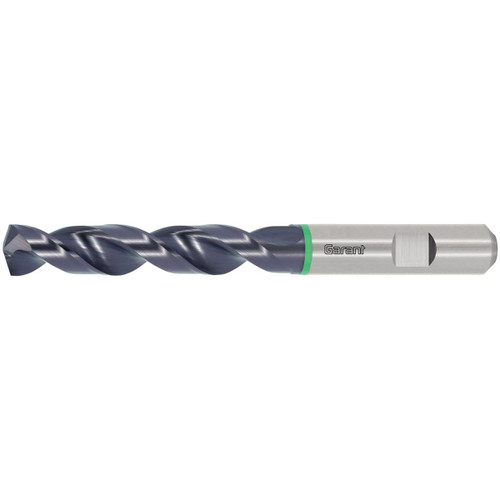

Particularly strong due to strengthened core and special profile. Special point geometry. High concentricity and long tool life. Precision drilling qualities.
Note:
Flute length LC = L2 + 1.5 × DC.
Standard: DIN 6537 L
Tolerance nominal ?: h7
Number of cutting edges Z: 2
Tolerance nominal ?: h7
recommended maximum drilling depth L2: 46 mm
Overall length L: 103 mm
Shank ? Ds: 10 mm
Feed f in steel < 750 N/mm2: 0.27 mm/rev.
Particularly strong due to strengthened core and special profile. Special point geometry. High concentricity and long tool life. Precision drilling qualities.
Note:
Flute length LC = L2 + 1.5 × DC.
Standard: DIN 6537 L
Tolerance nominal ?: h7
Number of cutting edges Z: 2
Tolerance nominal ?: h7
recommended maximum drilling depth L2: 46 mm
Overall length L: 103 mm
Shank ? Ds: 10 mm
Feed f in steel < 750 N/mm2: 0.27 mm/rev.
