Description
Version:

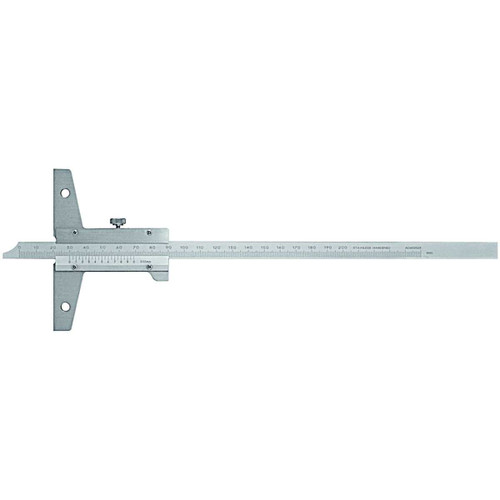

Measuring beam and vernier satin chrome-plated. Vernier adjustable. High-contrast scale. Measuring and contact faces precision lapped. Wider bridging widths achievable by using extension base(see No. 418744).
Optional extras:
Additional extension base No. 418744 (180 ? 320 mm).
Calibration: A1
Packaging: Wallet
Graduation: 1/20 mm
Vernier length: 39 mm
Measurement deviation E MPE: ± 0.05 mm
Bridge length: 100 mm
Cross-section measuring beam: 11×4 mm
Measuring beam and vernier satin chrome-plated. Vernier adjustable. High-contrast scale. Measuring and contact faces precision lapped. Wider bridging widths achievable by using extension base(see No. 418744).
Optional extras:
Additional extension base No. 418744 (180 ? 320 mm).
Calibration: A1
Packaging: Wallet
Graduation: 1/20 mm
Vernier length: 39 mm
Measurement deviation E MPE: ± 0.05 mm
Bridge length: 100 mm
Cross-section measuring beam: 11×4 mm
