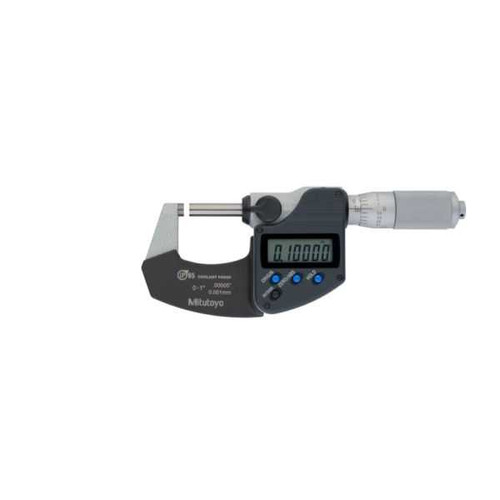

Mitutoyo IP65 Digimatic Outside Micrometer 0-1 In range, 0.00005 In - 0.001mm resolution, No Output, Ratchet Thimble

Series 293
Coolant-Proof Micrometer
The Mitutoyo Digimatic coolant-proof digital SPC output capable micrometer produces highly accurate, repeatable measurements even when exposed to liquids and dirt.

Features & Benefits
The Mitutoyo IP65 rated coolant-proof micrometer’s ratchet stop thimble mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring widely different dimensions, as well as, easier one-handed measurements.

• Ranges from 0-12”/0-300mm
• Measurement data output is available with a water-resistant connection cable
• Frame is coated with an anti-slip finish for improved grip during use
• Twice as long battery life than previous models improves throughput and efficiency
• Auto power ON/OFF function saves battery life and allows for easier use
• Includes a standard bar except for the 0-1”/0-25mm model
• Some models include a Mitutoyo Certificate of Inspection*
• Supplied in a plastic, fitted case
• IP65 protection permits use in environments exposed to cutting oil, dust, etc.**

*It is not the type used to obtain calibration certificates.
**Anti-corrosion treatment is required after use



SERIES 293 Technical Data

• Technology: Digimatic
• IP Rating: IP65
• Measuring Faces: Carbide tip
• Display: LCD
• Battery: SR44 (1pc.) 938882
• Battery Life: Approx. 2.4 years under normal use

• Order No.: 293-344-32
• Units: Metric, Inch
• Range: 0-1″ / 0-25.4mm
• Resolution: 0.00005″ / 0.001mm
• Accuracy: ±0.00005″
• SPC Output: No
• Ratchet/Thimble: Ratchet Thimble
• Mass: 270g
• Measuring Force: 7-12N
• Flatness: 0.3µm / 0.000012″
• Parallelism: 0.000040″ or less / 1µm or less
