Description

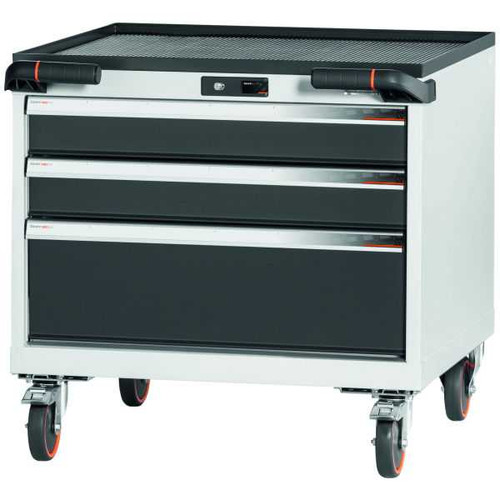

The GARANT GridLine Roller Cabinet is a professional-grade mobile tool storage solution engineered for modern industrial environments. Built with high-rigidity 1.2 mm sheet metal, this 24×28G mobile cabinet delivers a maximum load capacity of 600 kg while maintaining agile maneuverability across workshop floors.
Key Highlights
- High Load Capacity: Engineered for heavy-duty industrial environments with a max total load capacity of 600 kg and individual drawer capacity of 75 kg.
- 100% Full Extension Drawers: Features differential runners for 100% drawer extension, equipped with self-closing and damping mechanisms for smooth, controlled operation.
- Mobile & Secure Transport: Fitted with an individual drawer release system (one-hand release) that prevents drawers from sliding open during transport. Includes a 2-component Haptoprene® push handle.
- Premium Mobility Package: Equipped with four 125 mm diameter treadless TPE wheels (2 fixed wheels and 2 swivel castors with parking brakes) for floor protection and stability when stationary.
- Safety & Locking System: Central cylinder lock secures all drawers. An integrated anti-tilt mechanism prevents more than one drawer from opening at a time.
- 4-Side Raised Edge Worktop: Top surface features a 4-sided raised edge complete with a ribbed rubber mat to protect workpieces and retain tools.
- Modular GridLine Design: Usable drawer area of 20×24G (500 mm W × 600 mm D) with 25 mm slot intervals for slotted dividers (from 75 mm front height).
Drawer Configuration & Internal Organization
The cabinet is equipped with either 4 or 5 full-extension drawers utilizing differential runners for effortless operation under high loads (up to 75 kg per drawer). Internal drawer side walls feature slotted grids at 25 mm intervals to accommodate custom slotted dividers and GridLine tool organizers.
Built for Industrial Safety & Transport
Designed specifically for mobile applications on dry, solid industrial floors, this cabinet features an individual drawer release system. This mandatory safety feature ensures drawers remain firmly locked during transport and will not accidentally roll open while moving. A central cylinder lock secures the entire unit, while an anti-tilt mechanism prevents multiple drawers from being extended simultaneously.
Durable Construction & Finish
Finished in high-quality powder coating:
- Cabinet & Drawer Body: RAL 7035 Light Grey
- Drawer Fronts: RAL 7016 Anthracite Grey
Intended Use & Safety Guidelines
Approved Applications
- Storage and organization of tools and industrial equipment.
- Intended for indoor industrial work environments on dry, solid floors.
- Mobile tool transport within production, maintenance, and machining facilities.
- Can be combined with other GridLine cabinets sharing identical depth (700 mm / 28G) and height dimensions.
Safety Instructions & Operating Limits
- Parking Brakes: Always engage the parking brakes on both swivel castors immediately after positioning the cabinet.
- Drawer Operation: Open only one drawer at a time to maintain stability. Keep drawers fully closed when moving the unit.
- Weight Limits: Do not exceed the maximum load rating of 75 kg per drawer or 600 kg total system weight.
- Prohibited Use: Do not stand, step, or sit on the roller cabinet, drawers, or top storage shelf. Do not use the cabinet to transport people or place heavy objects roughly onto the top surface.
Frequently Asked Questions (FAQ)
What are the drawer dimensions and GridLine size of this cabinet?
The drawers have a usable width of 500 mm (20G) and a usable depth of 600 mm (24G), giving a usable area of 20×24G.
What prevents the drawers from opening while rolling the cabinet across the shop floor?
This roller cabinet is equipped with a one-hand individual drawer release system. This system locks each drawer individually in place and prevents spontaneous opening during transport.
What type of wheels are included, and do they mark the floor?
The cabinet comes with 4 wheels (diameter 125 mm) made of treadless TPE (Thermoplastic Elastomer) that will not mark floors. The setup includes 2 fixed wheels and 2 swivel castors equipped with parking brakes.
Can I install slotted dividers inside the drawers?
Yes. Drawers with a front height of 75 mm or greater feature interior slots at 25 mm intervals designed to accept GARANT slotted dividers and tool organizational inserts.
What is the color scheme of the cabinet?
The cabinet body and drawer housing are powder-coated in RAL 7035 Light Grey, while the drawer fronts are finished in RAL 7016 Anthracite Grey.
Can we fit out an entire workshop with this system?
Yes. This roller cabinet is one piece of the modular GARANT GridLine system, and it's meant to be combined with other cabinets, benches, and mobile units to outfit a whole shop. If you're planning a custom workshop buildout, reach out to info@hoffmanngroupusa.com and we'll help you lay it out right.
What is the GARANT GridLine ecosystem?
The GARANT GridLine Ecosystem: Beyond the Workbench
This workbench is your entry point into the award winning GARANT GridLine ecosystem, a modular world built on precision. Unlike standard shop furniture, every GridLine component is engineered to work in total harmony. All dividers and foam inlays fit perfectly into these drawers with zero wasted space, so your organization looks as professional as your output.
Choosing GridLine means you're not just buying one workbench, you're investing in a system that scales with you. The flush, "no overhang" design lets you combine benches, cabinets, and mobile ToolCars into continuous rows or full islands while keeping a unified look, a design that has earned both Red Dot and iF Design honors. Whether you're tightening up today's workflow or planning ahead for growth, the integrated media paths and consistent ergonomics keep your shop running like a high-performance environment that looks as good as it works.
Don't just organize your shop. Optimize the whole operation.
