Description
Version:

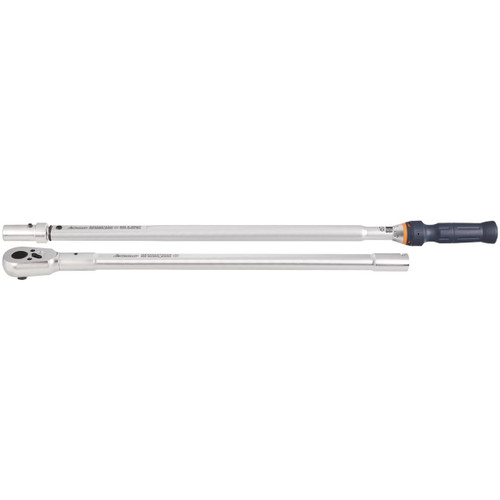

Handy and very compact single-arm torque wrench, adjustable by scale and self-triggering. Extremely high repeat accuracy, since high quality materials are used throughout. Wearing parts, such as compression springs, are specially pre-treated and sorted. Reversible ratchet for left-hand and right-hand tightening.
Acoustic and perceptible "click effect" ensures particularly easy use and accurate setting of the desired torque.
With built-in reversible ratchet (with ejector up to size 320) ? for left-hand and right-hand tightening.
Units of measure: Nm 2-piece with release tool in nylon carrying bag.
Function:
The wrench triggers giving a "signal" (clearly audible acoustic tone and noticeable vibration) and afterwards is immediately ready for use again.
Application:
For medium to larger batch productions.
Standard:
Geprüft nach DIN EN ISO 6789.
Accuracy:
Of the displayed value only for right-hand tightening: ±3 %
Cutting dataa:
Legend for drawing and formula:
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
Note:
Calibration is only possible for right-hand tightening.
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
Direction of tightening: For right and left-hand tightening
Torque measuring accuracy: ±3 %
Test certificate: Manufacturer's test certificate
Calibration: O1
Square drive: 3/4 in
Overall length L: 1764 mm
Torque range: 400 - 1000 Nm
Scale graduation, 1 graduation =: 5 Nm
Weight: 10000 g
Square drive: 3/4 in
