Description
NOTE: Colour selection possible
Version:
Size 1000×1000 mm

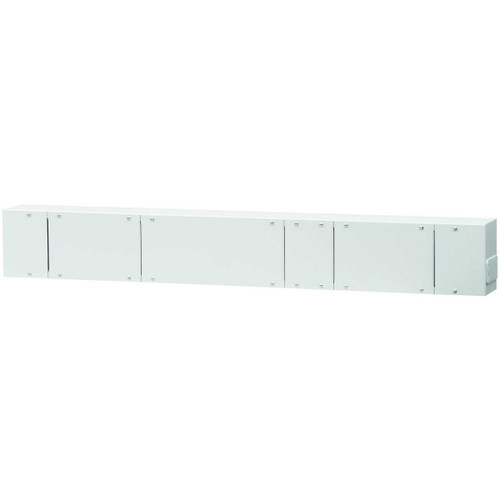

Of sheet metal modular design. All power components include cables and plugs. The modules and covers can be changed / positioned as desired.
•Cable slots are provided on the upper, lower, and end faces for power supplies and for linking multiple media tracks together.
Electrical pre-installation with industrial plug-in system (applies only to media tracks):
1 pc. distribution block No. 928492 with 5-pin feed/supply cable and 5 pcs. 3-pin sockets,
1 pc. 5-pin plug connector No. 928490 size 5 included for the feed cable. Can be fitted with a total of 16 individual modules (up to 8 modules per side), each with 1 unit divider No. 928470.
Description:
Technical data for industrial plug-in system (No. 928490; 928491; 928492):
Suitable for:
Corner worktops No. 926302 ?" 926342, corner modules No. 920103, 920104, 920116.
Note:
Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician!
Colour selection: RAL 9002, 7035, 7016, 5012, 5005
Width: 1000 mm
Depth: 100 mm
Installation height: 139 mm
Divider unit: 16 units
Empty modules (1 unit / 2 units / 3 units): 4× / - / 4×
Version:
Size 1000×1000 mm
Of sheet metal modular design. All power components include cables and plugs. The modules and covers can be changed / positioned as desired.
•Cable slots are provided on the upper, lower, and end faces for power supplies and for linking multiple media tracks together.
Electrical pre-installation with industrial plug-in system (applies only to media tracks):
1 pc. distribution block No. 928492 with 5-pin feed/supply cable and 5 pcs. 3-pin sockets,
1 pc. 5-pin plug connector No. 928490 size 5 included for the feed cable. Can be fitted with a total of 16 individual modules (up to 8 modules per side), each with 1 unit divider No. 928470.
Description:
Technical data for industrial plug-in system (No. 928490; 928491; 928492):
- Maximum connection value 230 V?/?AC, 16 A or 400 V?/?AC, 16 A.
- Total load capacity at AC: 3.5 kW.
- Maximum connected load, three-phase AC: 10.5 kW.
- Conductor cross-section of the pre-assembled cables:
3 × 1.5 mm2 for single-phase AC (L, N, PE)
5 × 1.5 mm2 for three-phase AC (L1, L2, L3, N, PE) - Protection class 1
- Index of Protection IP 20.
Suitable for:
Corner worktops No. 926302 ?" 926342, corner modules No. 920103, 920104, 920116.
Note:
Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician!
Colour selection: RAL 9002, 7035, 7016, 5012, 5005
Width: 1000 mm
Depth: 100 mm
Installation height: 139 mm
Divider unit: 16 units
Empty modules (1 unit / 2 units / 3 units): 4× / - / 4×
