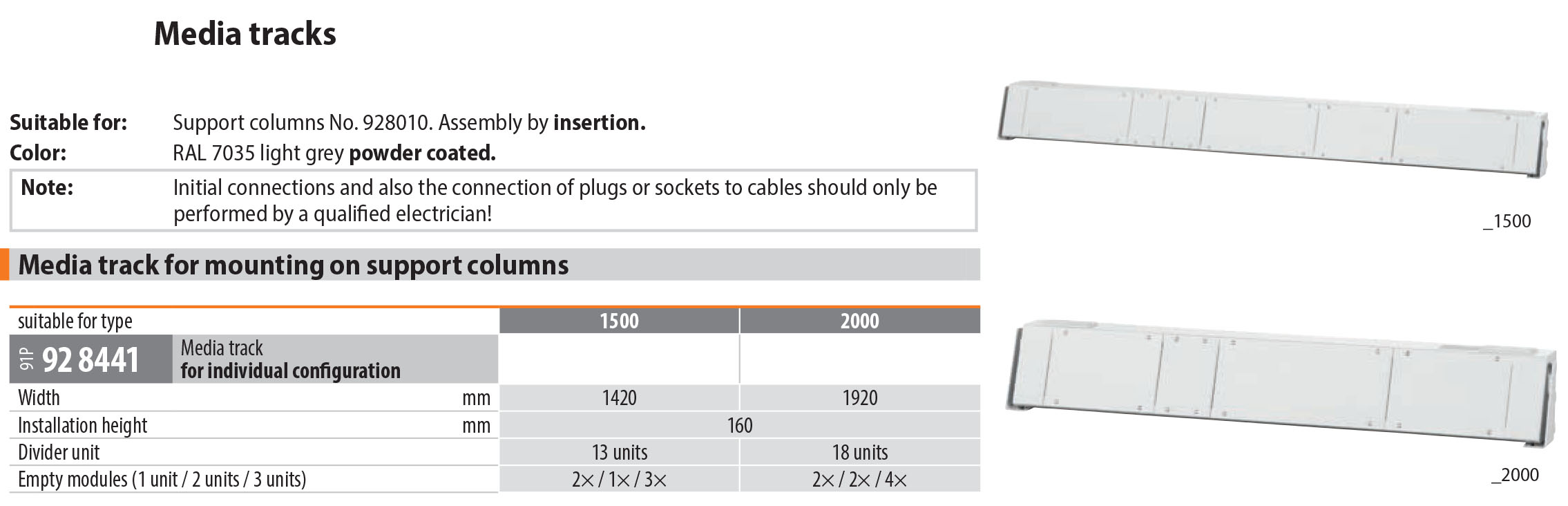

Description
NOTE: Colour selection possible
Version:
Of sheet metal modular design. All power components include cables and plugs. The modules and covers can be changed / positioned as desired.
•Cable slots are provided on the upper, lower, and end faces for power supplies and for linking multiple media tracks together.
Electrical pre-installation with industrial plug-in system (applies only to media tracks):
1 pc. distribution block No. 928492 with 5-pin feed/supply cable and 5 pcs. 3-pin sockets,
1 pc. 5-pin plug connector No. 928490 size 5 included for the feed cable.
Description:
Technical data for industrial plug-in system (No. 928490; 928491; 928492):
Suitable for:
Support columns No. 928010, corner support column No. 928030. Installation by insertion.
Colour:
RAL 7035 light grey powder coated.
Note:
Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician!
Colour selection: RAL 9002, 7035, 7016, 5012, 5005
Width: 920 mm
Installation height: 160 mm
Divider unit: 8 units
Empty modules (1 unit / 2 units / 3 units): 1× / 2× / 1×
Version:
Of sheet metal modular design. All power components include cables and plugs. The modules and covers can be changed / positioned as desired.
•Cable slots are provided on the upper, lower, and end faces for power supplies and for linking multiple media tracks together.
Electrical pre-installation with industrial plug-in system (applies only to media tracks):
1 pc. distribution block No. 928492 with 5-pin feed/supply cable and 5 pcs. 3-pin sockets,
1 pc. 5-pin plug connector No. 928490 size 5 included for the feed cable.
Description:
Technical data for industrial plug-in system (No. 928490; 928491; 928492):
- Maximum connection value 230 V?/?AC, 16 A or 400 V?/?AC, 16 A.
- Maximum connected load, single-phase AC: 3.5 kW.
- Maximum connected load, three-phase AC: 10.5 kW.
- Conductor cross-section of the pre-assembled cables:
3 × 1.5 mm2 for single-phase AC (L, N, PE)
5 × 1.5 mm2 for three-phase AC (L1, L2, L3, N, PE) - Protection class 1
- Index of Protection IP 20.
Suitable for:
Support columns No. 928010, corner support column No. 928030. Installation by insertion.
Colour:
RAL 7035 light grey powder coated.
Note:
Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician!
Colour selection: RAL 9002, 7035, 7016, 5012, 5005
Width: 920 mm
Installation height: 160 mm
Divider unit: 8 units
Empty modules (1 unit / 2 units / 3 units): 1× / 2× / 1×
