Description
SERIES 513 - Horizontal (20˚ Tilted Face), Vertical and Parallel

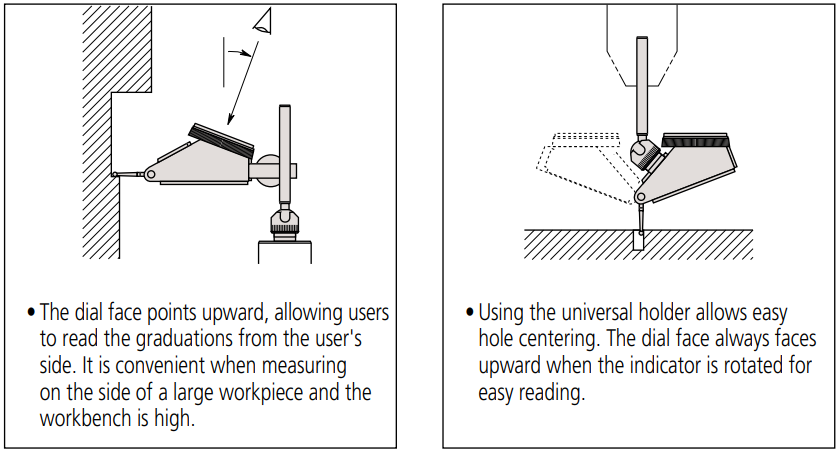

Specially designed for easy viewing of measurements.
|
Graduation |
SKU |
Range |
Accuracy |
Dial Reading |
Measuring Force |
L (mm) |
Anti-magnet type |
Long contact point type |
Jeweled bearing type |
|
|
Basic Set |
Full Set |
|||||||||
|
0.0005" |
U43028 .03BASIC |
U43028 .03INCH |
0.03" |
± 0.0005" |
0-15-0 |
0.3N or less |
19.9 |
Yes |
- |
Yes |
|
0.0005" |
U43028 .008INCH |
0.03" |
± 0.0005" |
0-15-0 |
0.2N or less |
33.9 |
Yes |
Yes |
Yes |
|
|
0.0001" |
U43028 .03INCH/L |
0.008" |
± 0.0001" |
0-4-0 |
0.3N or less |
19 |
Yes |
- |
Yes |
|
FEATURES
- Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
- No-clutch structure for automatic reversal of measuring direction.
- One-piece bezel and crystal design with O-ring provide resistance to water and dust.
- The glare-free flat crystal face has a scratch-resistant coating.
- High sensitivity and quick response because of jeweled bearings.
- Standard carbide contact point provide.

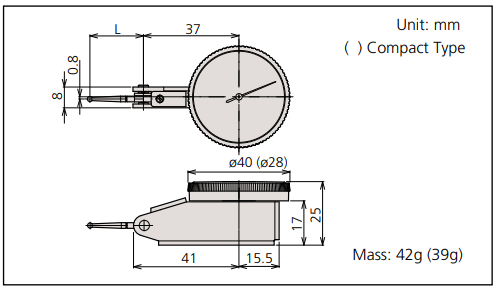

Dimensions and Mass
