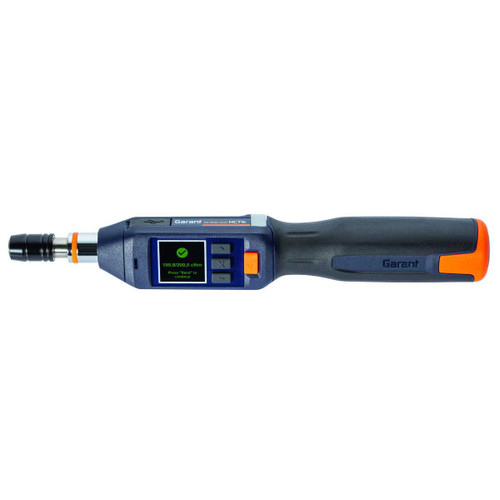

GARANT Electronic torque screwdriver

Version:

• Display: Large, sharp-contrast illuminated 1.3-inch TFT display with double scale with viewing angle stability and rotating view to easily read the display regardless of the application. With battery display and memory display. Torque and rotational angle both displayed at the same time.
• Display: Peak and Track function modes.
• Modes: Displaying torque, triggering torque, triggering rotational angle, triggering rotational angle with rotational angle monitoring, triggering rotational angle with torque monitoring. Up to 100 screw tightening profiles can be programmed. Recurrent screw tightening profiles can be summarised into a procedure (up to 10 procedures each with up to 10 screw tightening profiles). Screw tightening profiles and procedures can be programmed directly on the wrench.
• Memory capacity: 1000 measurement values with timestamp (incl. date and time).
• Data output: Available via USB-C. The data can the exported as a .csv file.
• Password protection: available as protection against unauthorised access to the menu (master password) and for verifying screw-tightening cases and procedures. In addition, you can set that reworking a screw connection that has been performed incorrectly requires input of a password.
• Warning signal outputs are haptic (vibration), visual (change of colour at the display, 360° LED ring with "traffic light function" clearly visible from anywhere) and acoustic (buzzer, beep sound). The pre-warning point can be configured individually. Haptic and acoustic warning signals can be disabled if desired.
• Protection class IP40
• The 2-component handle of the torque/rotational angle screwdriver ensures specially good ergonomics and high torque transmission.
• Resistant to oils, grease, fuel, brake fluid and Skydrol.
• Languages: German, English, Spanish, Italian, French.
• Factory settings: The wrench can be reset to the factory settings.
• Display of the software version with serial number, load cycle counter and calibration date.
• Calibration reminder: after number of load cycles.
• Units of measure: cNm, Nm, lbfft, lbt·in.

Function:
IP40: Protected against penetration by foreign bodies with ? > 1 mm, however tools and wires should be kept away, and offers no protection against water.
Standard:
Geprüft nach DIN EN ISO 6789.
Accuracy:
Torque: Clockwise and anti-clockwise ±2%. Rotation angle: ± 1° for the measurement range up to 100°, ± 1% for the measurement range 100° and beyond.
Supplied with:
USB-C data cable, 1 commercially available Li-ion rechargeable battery type 18650 3.6 V / 3400 mA (can be charged directly within the tool via a USB-C plug). Supplied in a sturdy plastic case.
Note:
Suitable additional batteries can be found under No. 081574 size 3500. Charger for 4 batteries optionally available under No. 081590 size 4ULTRA.
Direction of tightening: For right and left-hand tightening
Torque measuring accuracy: ±2 %
Interface: USB interface
Bit socket: F 6.3
Test certificate: Manufacturer's test certificate
Calibration: O1
Overall length L: 246 mm
Torque range: 40 - 200 cNm
Resolution: 0.1 cNm
Weight: 294 g
